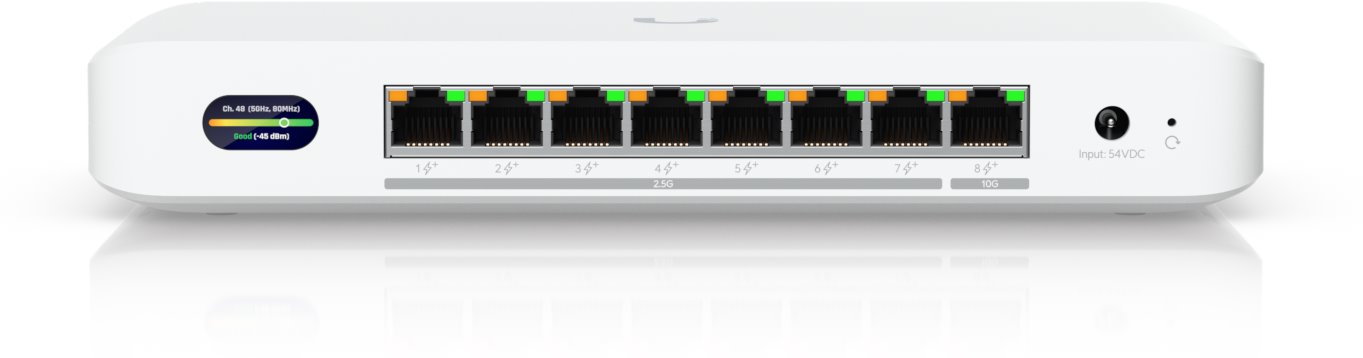

Ubiquiti UniFi Device Bridge Switch

The compact PoE+ switch with an integrated Wi-Fi 7 bridge offers an ideal solution for the rapid deployment of networks without lengthy cabling. Thanks to the UniFi WiFi Auto-Link technology, it automatically connects to UniFi access points in the 5 GHz and 6 GHz bands, ensuring stable high-speed connectivity. The maximum throughput of up to 5.8 Gbps in the 6 GHz band and 4.3 Gbps in the 5 GHz band allows smooth operation of modern applications, while future support for STR MLO will further enhance network capacity and resilience by enabling simultaneous aggregation of both bands.

Fully equipped PoE+ switch for modern network environments

For connecting end devices, the switch offers one 10GbE uplink and seven 2.5GbE ports, allowing for a flexible and high-speed internal infrastructure. All eight ports support PoE+ with up to 30 W per port. In its basic configuration, it provides 35 W of total PoE power, which can be increased to 185 W with an optional 210W adapter—ideal for powering demanding devices such as cameras, sensors, or access points. With full VLAN support and management via UniFi Network, users gain clear control over the entire network.

Versatile deployment options and professional management

The compact design allows for desk or wall mounting, and the device is enhanced with a 0.96" status display for quick orientation on network status. The operating range of -30 to +40 °C ensures reliability even in harsh conditions. The integrated Wi-Fi 7 bridge not only functions as a wireless connection but can also operate as a standard wired switch when connected to a wired uplink. With a combination of high performance, advanced features, and a compact design, this solution meets the needs of modern companies, smart homes, and professional installations.

Key features

• Integrated Wi-Fi 7 bridge with UniFi WiFi Auto-Link for automatic wireless connection.
• Future support for STR MLO for simultaneous aggregation of 5GHz and 6GHz bands.
• 1× 10GbE uplink and 7× 2.5GbE ports with full PoE+ support (30 W per port).
• Total PoE power of 35 W (60W adapter) or up to 185 W (optional 210W adapter).
• Wi-Fi 7 speeds up to 5.8 Gbps (6 GHz) and 4.3 Gbps (5 GHz).
• VLAN support and management via UniFi Network.
• Compact design with options for desk or wall mounting and a 0.96" status display.
• Operating temperature of -30 to +40 °C.

Package contents

• Device
• Power adapter 54V DC/1.1A (60W)
• Mounting bracket
