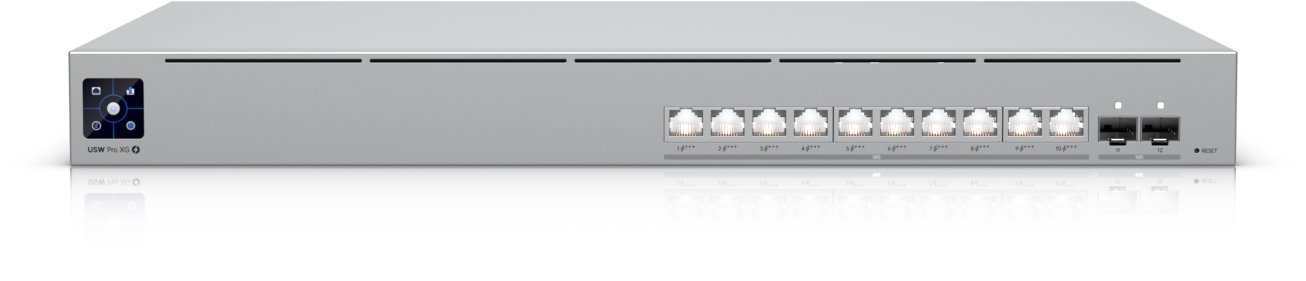

Ubiquiti UniFi Switch Pro XG 10 PoE, 400W

UniFi Switch Pro XG 10 PoE is a rackmount manageable 10 Gigabit L3 Switch with PoE, offering a switching capacity of 240 Gbps, (10) 10 Gigabit ports (supporting 802.3af/at/bt PoE), two SFP+ (1/10Gbps) slots, and a total PoE budget of 400 W. The switch can be powered via standard 230 V or through the UniFi SmartPower RPS, which mainly serves as a backup power supply in case of internal PSU failure. A new feature is Etherlighting, color port lighting that indicates port location, speed, or VLAN status.

Key Features

• (10) 1G/2.5G/5G/10 Gbps LAN ports (802.3af/at/bt PoE)
• (2) 1/10G SFP+ slots
• 400 W PoE budget - PoE on all Ethernet ports
• 1.3" touch display
• Etherlighting - port backlighting
• Backup power via SmartPower RPS connector
• Supported in UniFi Network from version 9.1.120

Management via UniFi Network

The UniFi switch has no web management but is centrally managed via UniFi Network with UniFi mobile app support, offering an extensive set of advanced L2 and L3 switching protocols and features, including operational modes (switching, mirroring, or aggregation) per port. The UniFi Network Controller and mobile app enable administrators to configure and monitor virtually all switch functions through a graphical user interface from anywhere.

Package Contents

• Device
• Power cable
• 19" rack mounting brackets
