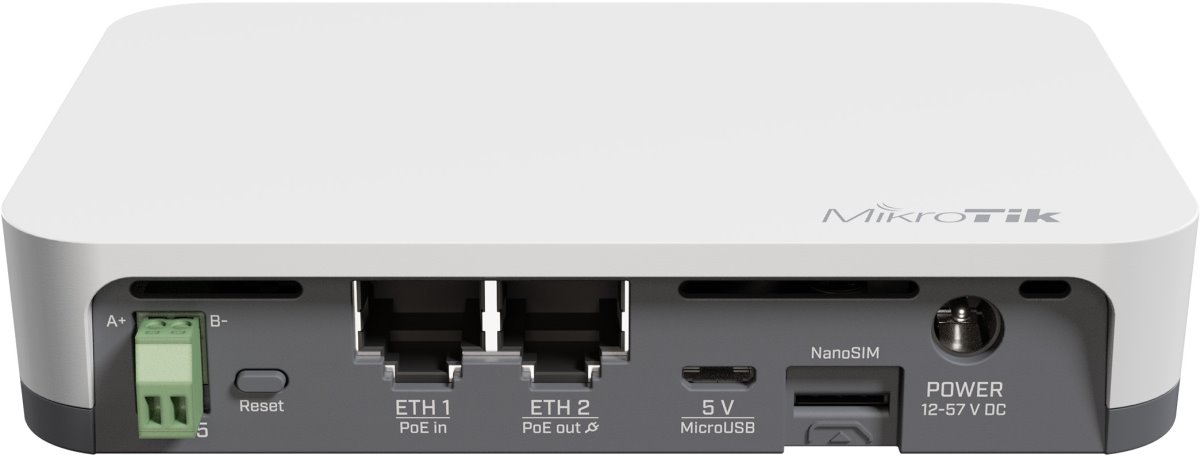

MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway

KNOT is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band 2 and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe. KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT. You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors and actuators, such as electricity meters and relays.

It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and moisture sensors with only a few megabytes per day!

Key features

• GPS support (GPS, GLONASS, BeiDou, Galileo) - SMA female connector
• Narrow Band and LTE cat. M1 technology - SMA female connector
• Integrated WiFi (802.11b/g/n), 300Mbps, 2x2 MIMO
• (2) 10/100Mbps (1x PoE IN, 1x PoE out)
• Integrated Bluetooth 5.2
• Operating system: RouterOS with L4 License with MQTT support
• SIM Slot (Nano SIM)
• Extra interfaces RS485/Modbus and GPIO
• Wide operating temperature -40 až +70°C
• Wide range of power options: DC connector, PoE, Micro USB

Package contents

• Device
• Power adapter 24V/1.2A
• DIN rail mounting kit
• USB A - USB Micro B cable
• Wall mount set
