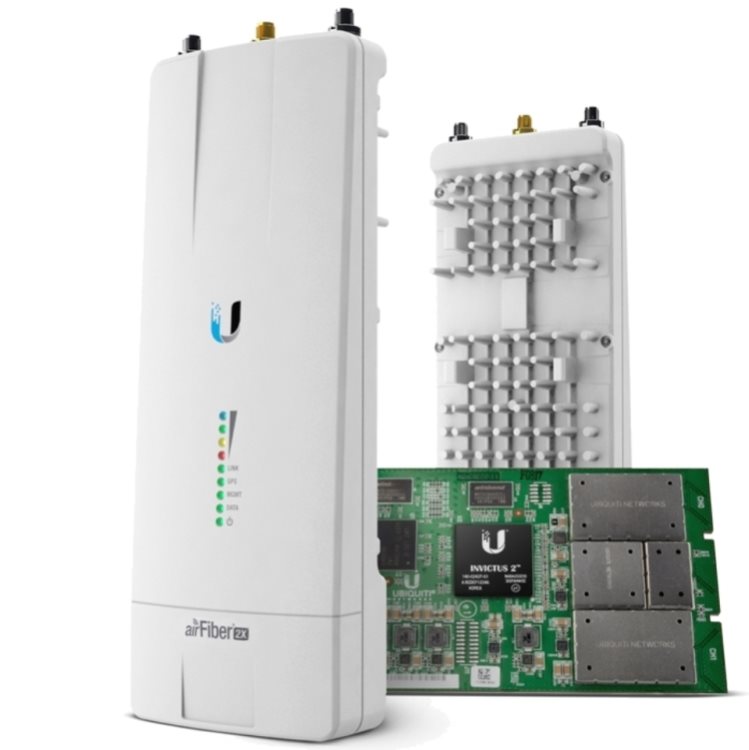

Ubiquiti AirFiber AF-2X, 500Mbps+ Backhaul, 2.4 GHz (price per piece)

Ubiquiti Networks continues the trend of stepping beyond its own shadow and constantly innovating. Now it brings revolutionary technology at a breakthrough price with the launch of a new product called airFiber X. The modular airFiber X system supports a wide spectrum of frequencies and is designed to be compatible with various antennas from Ubiquiti. Thanks to the smart design, it is possible to upgrade from an existing PtP connection (RocketDish + Rocket M) to a connection using airFiber X without much intervention.

Flexible channel width allows you to set a different Tx and Rx frequency to eliminate interference. In addition to the frequency, it is also possible to set different bandwidths for both Tx and Rx for asymmetric operation, which is more frequent than symmetrical.

Important features

• GPS antenna with magnetic attachment
• Passive Gigabit PoE 24V/1A // Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
• Transmission speed up to 500 Mbps*
• Long range up to 200 km*
• Easy configuration using the familiar airOS F
• Frequency range: 2400 - 2500 MHz (depends on the region used)
• Channel width: 3.5, 5, 7, 10, 14, 20, 28, 30, 40, 50, 56 MHz

Package contents

• Device
• PoE power adapter
• Power cord
• Metal drawstring
• GPS antenna
• GPS antenna holder
• (2) duct tape
