Ubiquiti PoE Over 2-Wire Retrofit Extender

PoE Transmission Extender over twisted pair or coaxial cable is the ideal solution wherever existing cabling cannot be replaced. With support for the HomePlug AV standard, it ensures reliable data and power transmission over non-standard routes – without the need to build new infrastructure. It allows for easy connection of remote devices in camera systems, industrial sites, or historic buildings where cabling changes are restricted.

Easy Installation and Universal Connectivity

The device is equipped with an 1× 10/100 Mbit Ethernet port and a two-pin connector that can be flexibly equipped with either a terminal block or an adapter with a BNC connector for coaxial cable. This means maximum adaptation to your field conditions. At the input, PoE++ power (50 V DC / 1.2 A) is available, while at the output it provides PoE+ (48 V DC / 0.6 A), which easily powers end devices such as IP cameras, sensors, or other infrastructure components.

Durability and Reliable Operation

In addition to its low power consumption of just 3 W, the extender is protected against electrostatic discharges and surges thanks to ESD/EMP protection – ±8 kV air and ±4 kV contact. It reliably operates within a temperature range from -10 to +40 °C, making it an ideal choice even for less favorable conditions. Its robust construction, flexible connection options, and simple implementation make this solution an effective tool for any professional network infrastructure.

Key Features

• PoE transmission over twisted pair or coaxial cable
• Support for HomePlug AV standard
• 1× 10/100 Mbit Ethernet port
• Input PoE++ (50 V DC / 1.2 A), output PoE+ (48 V DC / 0.6 A)
• ESD/EMP protection – ±8 kV air, ±4 kV contact

Package Contents

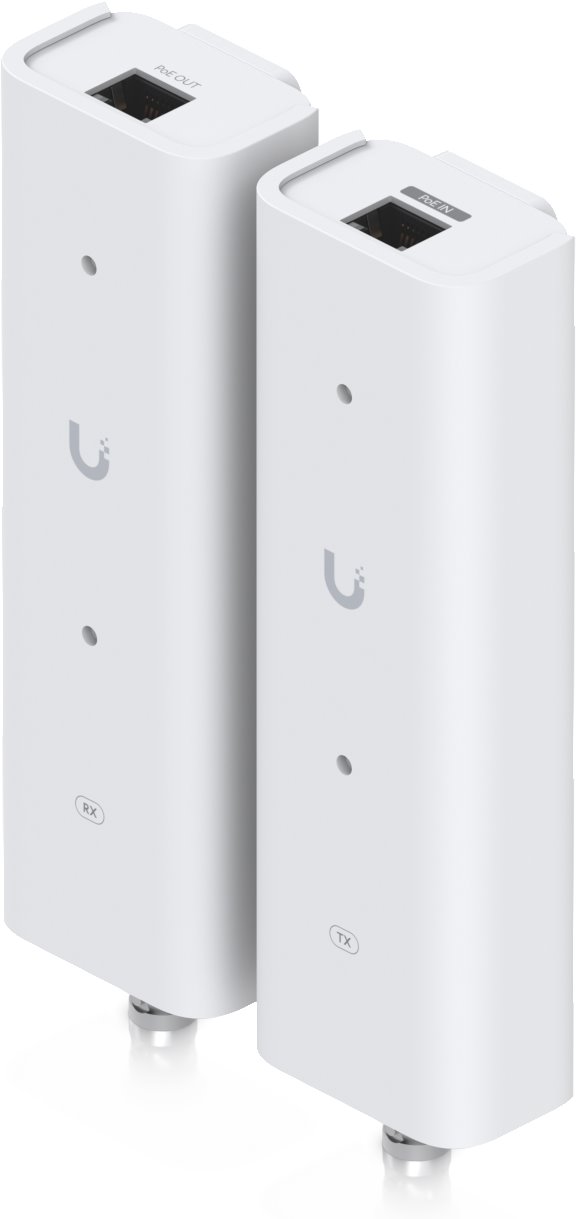

• (2) Extender
• (2) Terminal blocks
• (2) Coax adapters
• (2) Plastic covers
• Mounting bracket
• Anchors and screws
