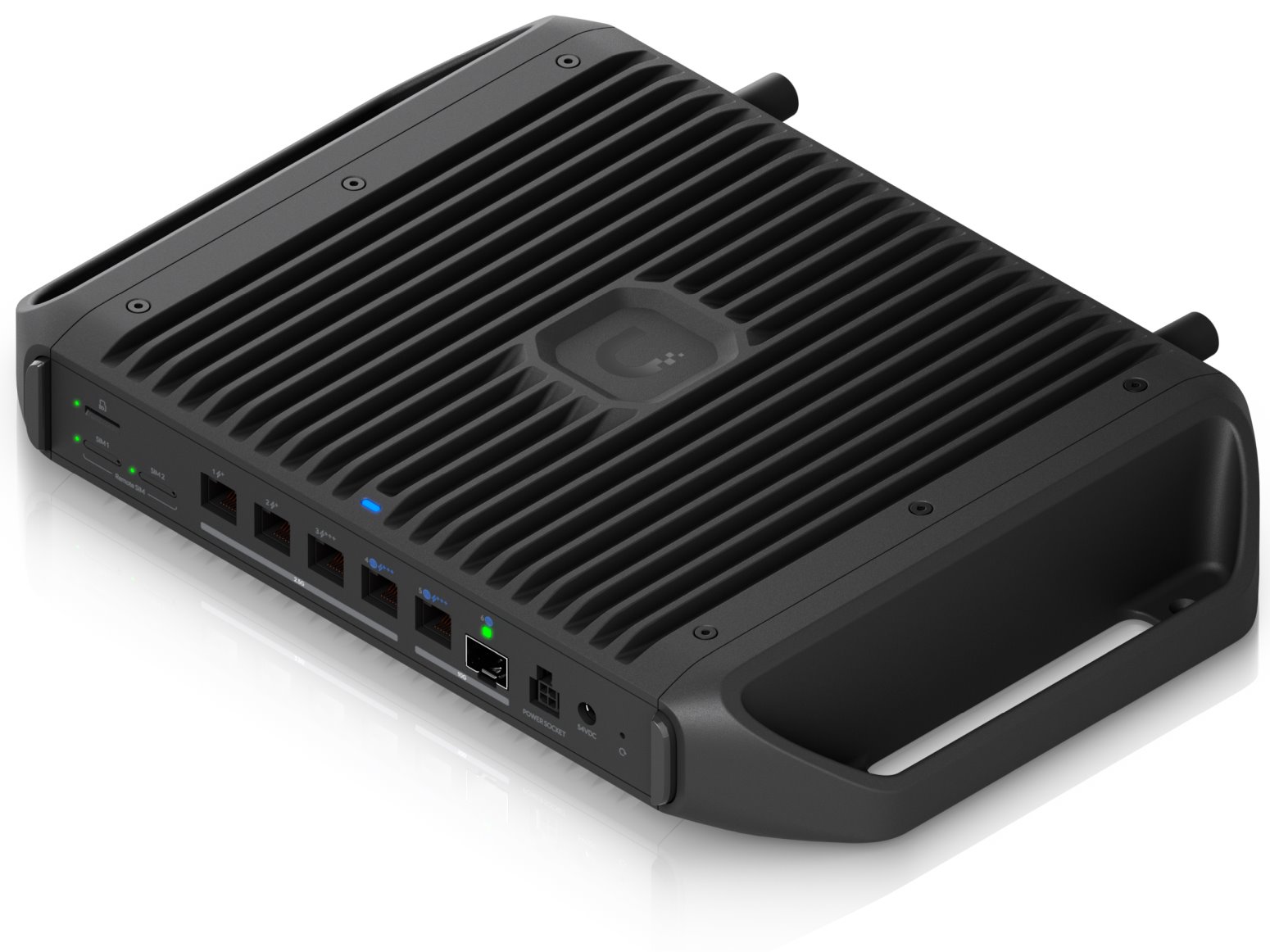

Ubiquiti UCG-Industrial, Cloud Gateway Industrial

Industrial-grade cloud gateway with passive cooling offers 10GbE connectivity and top performance for demanding environments with high device density. With a total system performance of up to 350W PoE budget, it is ideal for powering access points, cameras, and other infrastructure elements. The integrated WiFi 7 (802.11be) access point with 2×2 MU-MIMO provides speeds of up to 4334 Mb/s on 5 GHz and reliable coverage of up to 115 m2.

Security and industrial readiness

The powerful quad-core ARM Cortex-A73 processor (2.2 GHz), 3 GB RAM, and integrated microSD storage enable full support for UniFi applications, including NVR functions. The device is designed for extreme conditions from -30 to +50 °C with ESD/EMP protection and flexible mounting on walls, tables, or in racks. Of course, there is comprehensive VPN support, including IPsec, WireGuard, and Teleport, along with the option for backup connection via 5G. The solution effortlessly manages more than 50 devices and serves over 500 concurrently connected users.

Key features

• 10 Gbps + 4× 2.5 Gbps ethernet (3× PoE+++ 90 W, 2× PoE+ 30 W)
• Optical interface 10G SFP+
• PoE budget up to 270 W (270 W DC / 75 W ATX)
• Integrated WiFi 7 (802.11be), 2×2 MU-MIMO – up to 4334 Mb/s (5 GHz) + 688 Mb/s (2.4 GHz)
• ARM Cortex-A73 2.2 GHz (quad-core), 3 GB RAM, 128GB microSD (UniFi Protect NVR)
• Management of 50+ devices, 500+ clients
• Operating temperature -30 to +50 °C, passive cooling, ESD/EMP protection
• VPN: Site Magic, IPsec, WireGuard, OpenVPN, Teleport + support for 5G backup WAN

Package contents

• Device
• Power adapter 54V DC / 350 W
• Power cable
• Stand base
• Plastic wall mount for the power supply
• (2) omnidirectional Wi-Fi antennas
• Screws + dowels
